Overview

Basic Info.

Model NO.	ER
Movement	Linear Displacement
Production Process	SemiConductor Integrated
Material	Metal
Accuracy Grade	0.1μm
IP Rating	IP65
Certification	CE
Customized	Customized
Stroke Length	50~800 mm
Data Format	Analog Current or Analog Voltage
Resolution	±0.1mm (Range <4 0 0mm)
Nonlinearity	0.05% Fs
Repetition Accuracy	Same Resolution
Hysteresis	<10µm
Temperature Coefficient	<30ppm/ºC
Magnet Velocity	Arbitrary
Protection Level	IP65
Operating Temperature	- 40ºC ~ +75ºC
Outer Tube Pressure	35MPa (Continuous)/70MPa (Peak)
Input Voltage	+ 2 4VDC ± 2 0% (Four-Wire System)
Operating Current	4 ~ 20mA or 0 ~ 2 0mA (Min/Max Load 0/500ÿ)
Polarity Protection	Maximum-30VDC
Overvoltage Protection	Maximum 36VDC
Transport Package	Paper Tube
Trademark	TEC Sensors
Origin	China
HS Code	90318090
Production Capacity	80000PCS/Year

Packaging & Delivery

Package Size40.00cm * 10.00cm * 10.00cm Package Gross Weight2.000kg

Product Description

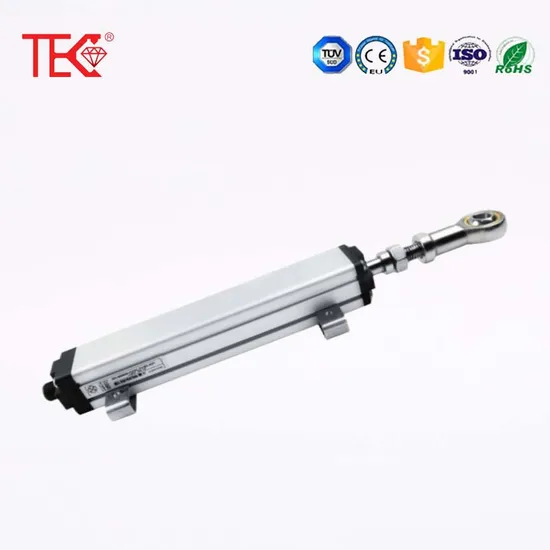

TEC magnetostrictive displacement sensor is a high-precision measurement device that uses advanced magnetostrictive technology. It combines Zheda Jingyi professional experience in sensor technology and precision measurement to provide users with reliable and accurate displacement measurement solutions. This sensor utilizes the magnetostrictive effect to accurately determine the displacement of an object by measuring changes in the magnetic field. It adopts the principle of non-contact measurement and has the characteristics of high precision, high stability, and long service life. It can provide users with real-time, reliable, accurate, and continuous linear displacement signals in harsh working environments, and is widely used in industrial automation fields such as metallurgical equipment, wind power equipment, engineering machinery, rubber machinery, port machinery, and energy.

ER type sensors are integral profiles suitable for compact installation

Product Parameters

Output:	Analog output
Measuring length:	50-1000mm,Customizable according to customer requirements
Repeat accuracy:	< ± 0.005% of full scale
Non-linearity:	0.05% FS
Operating voltage Ub:	+ 2 4Vdc &plusmn; 2 0% (four-wire system)
Ambient temperature:	- 40&ordm;C ~ +75&ordm;C
Mechanical configuration:	Fastening M20 threads, Fastening M18 threads, Fastening 3/4" threads
Housing material:	Aluminum profil
IP rating:	IP65
Approval/Conformity:	CE
