Overview

Basic Info.

Model NO.	FR-10mm
Movement	Linear Displacement
Production Process	Injection
Material	Stainless Steel
Accuracy Grade	0.5G
IP Rating	IP65
Certification	CE
Customized	Customized
Transport Package	Carton Box
Specification	20*8*8
Trademark	NorwisTech
Origin	Guangdong
HS Code	9031809090
Production Capacity	50000000/Year

Packaging & Delivery

Package Size12.00cm * 8.00cm * 8.00cm Package Gross Weight1.000kg

Product Description

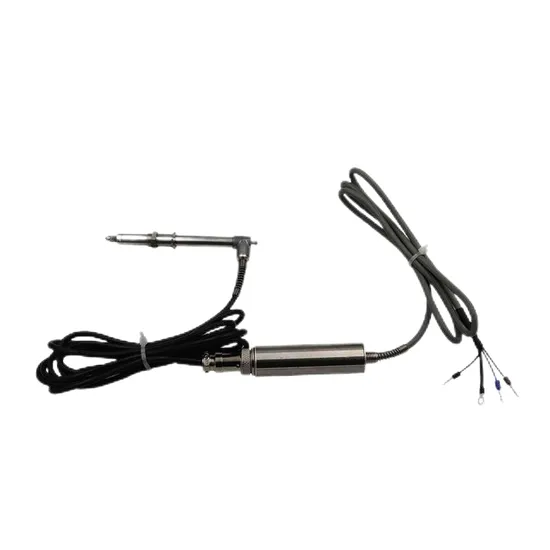

Differential transformer displacement sensor(LVDT)can be widely used in aerospace,machinery,construction, textile,railway,coal,metallurgy,plastics,chemical industry,scientific research institutions and other industries of national economy.It is a high-precision displacement sensor for measuring elongation,vibration,object
thickness and expansion

Product Description Product Parameters

Power supply	12-24 VDC
Working current:	Voltage output type, power supply current≤12mA; Two wire current output type, supply current 4-20mA
Displacement range:	F10:0-2.5mm F25:0-5m F50:0-10mm
Output signal	0-5V;0-10V;4-20mA;RS485 digital signal
Linear error	Analog signal output:0.25% FS Digital signal output:0.1% FS
Repetition error	≤1um
Resolution	≤O.1um
Dynamic characteristi	10Hz
Measuring force	80g
Operating temperature	-25°C --- +85 °C
Impact resistance	250G/11 ms
Vibration tolerance	10g/2KHz
Temperature coefficie	Zero point≤0.01/°C;Sensitivity ≤025/°C

Detailed Photos Installation Instructions Company Profile Packaging & Shipping FAQ Q: What's the output signal?
There are 4 output signal: analog resistance 0-5/0-10KΩ, analog voltage 0-5/0-10 VDC, analog current 4-20 mA. and RS485

Q: How can I get the quotation? Please send your inquiry to us. Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?
We need to know the following information: length, signal output,

Q: Can I get samples?
Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
