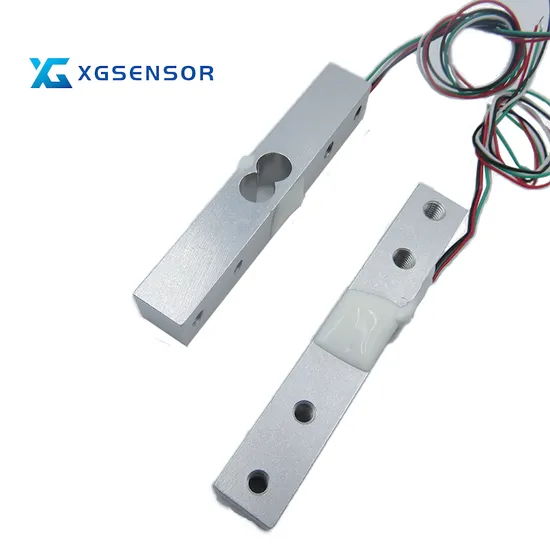

Mini Single Load Cell Sensor100g To100kg Small Capacity and Small Size Aluminum

Mini Single Load Cell Sensor100g To100kg Small Capacity and Small Size Aluminum

Overview Company Profile Product pictureProduct size drawingProduct parameter list Similar product recommendation Load C

Send your inquiry

DESCRIPTION

Overview
Basic Info.
Model NO. LP80
Material Stainless Steel
IP Rating IP65
Certification RoHS
Customized Customized
Transport Package Carton
Specification 80*12.7*12.7
Trademark XG
Origin China
HS Code 90268090
Production Capacity 900000PCS/Year
Product Description

Mini Single Load Cell Sensor100g To100kg Small Capacity and Small Size Aluminum

Company Profile

Product pictureProduct size drawingProduct parameter list
capacityKg1~20Kg
Rated Outputmv/v1.0±0.15
Non-linearity%F.S0.05%F.S
Hysteresis%F.S0.05
Repeatability%F.S0.05
Creep%F.S/3min0.05
Temp.effect on zero%F.S/10ºC0.05%F.S
Temp.effect on span%F.S/10ºC0.05%F.S
Zero balancemv/v±0.05
Input impedanceΩ1000±6
Output impedanceΩ1000±5
Insulation resistance≥2000(100VDC)
Recommended excitation voltageVDC3~10
Allowed excitation voltageVDC3~12
Compensated temp.RangeºC-10ºC~+40ºC
Operating temp.RangeºC0ºC~+40ºC
Safe overload%F.S120
Ultimate Overload%F.S150
ConnectionExcitation: Red:+ Black:-
Signal: Green:+ White:-
Similar product recommendation Load Cell AccessoriesWe can also provide peripheral supporting parts of the load cell, such as load cell display, load cell transmitter, load cell mounting bracket and other supporting partsOEM customizationWe can carry out OEM customized design and manufacture according to your ideas to achieve the functions and application scenarios you need.Customized serviceWe have an excellent design team, which can provide customized design services according to the functions, precision and application you need.
